| کارایی و رده بندی |
طراحی و گرافیک, کاربری صنعتی, کاربری عمومی, کاربری مالتی مدیا
|
| وضعیت محصول |
استوک
|
| برند و سری |
اچ پی الیت‌دسک – HP EliteDesk, شرکت اچ پی Hewlett-Packard Company – HP
|
| نوع و مدل کیس |

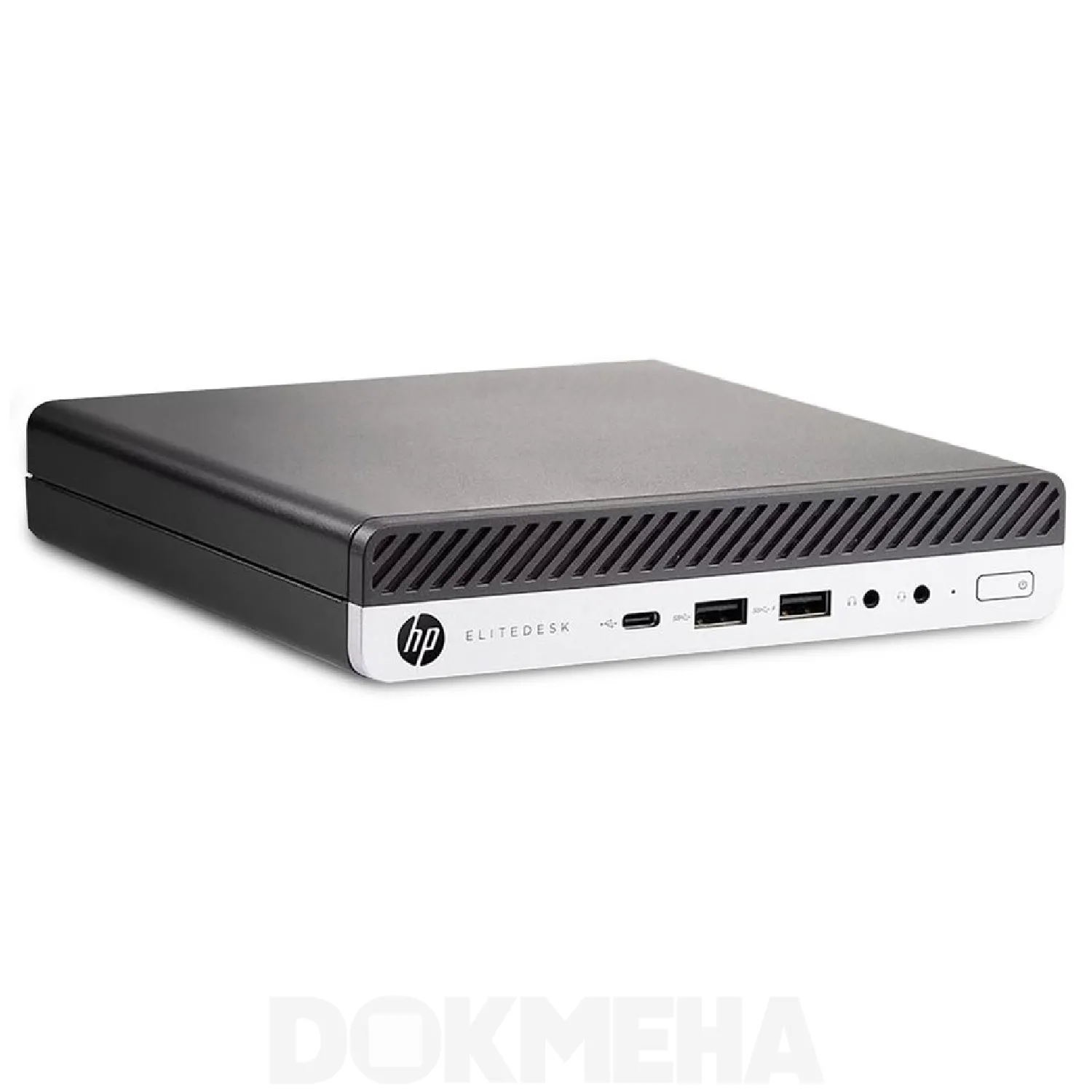

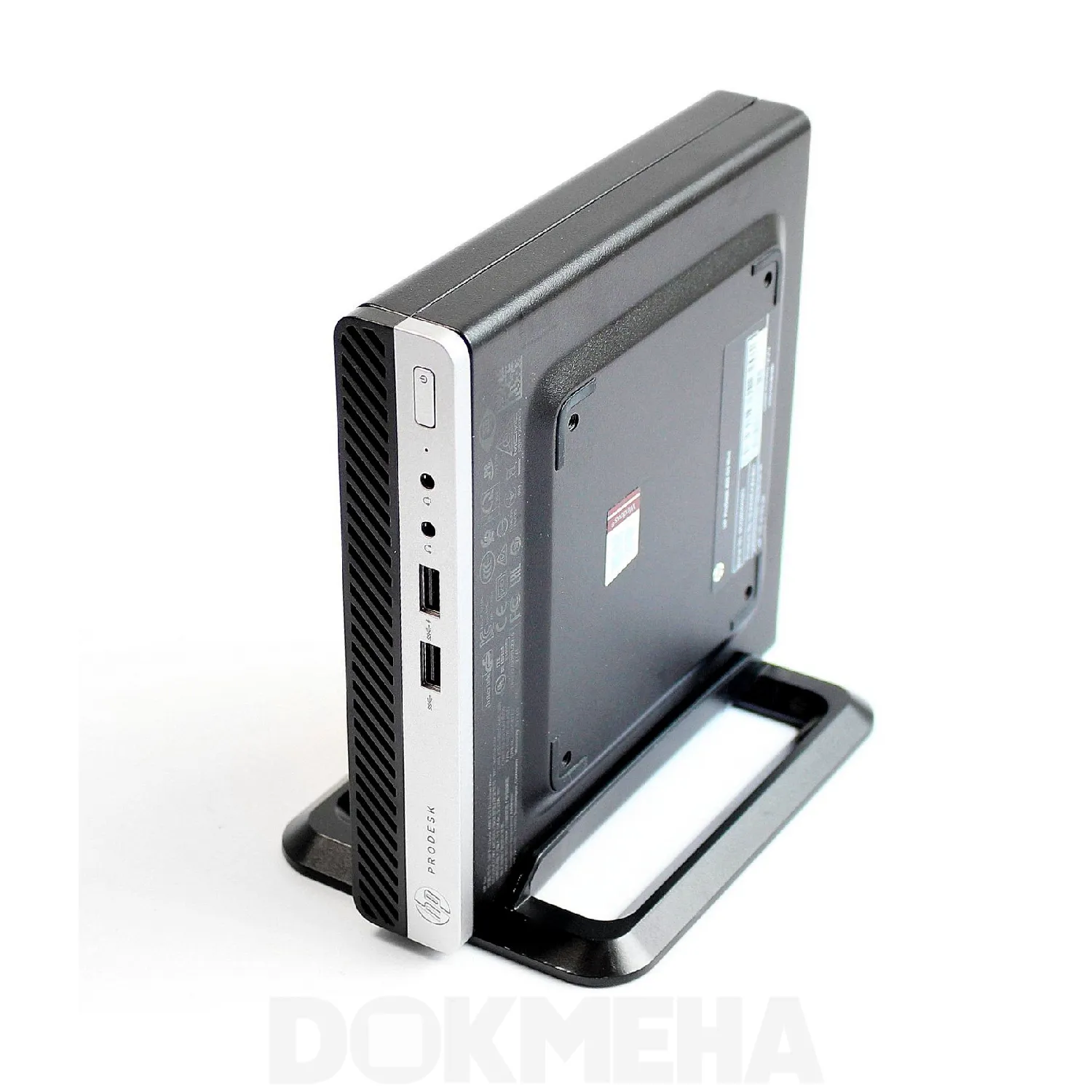

Mini, HP EliteDesk 705 G4 Desktop Mini PC
|
| سیستم عامل های قابل نصب |
Windows 10 Pro 64 – HP recommends Windows 10 Pro.
Windows 10 Pro 64 (National Academic only)
Windows 10 Home 64
Windows 10 Home Single Language 64
FreeDOS
|
| نسل پردازنده قابل پشتیبانی |
7th Generation AMD A10 APU processor (A10-9700E)
7th Generation AMD A6 APU processor (A6-9500E)
AMD Athlon™ PROprocessor
AMD Ryzen™ 3 PRO processor
AMD Ryzen™ 5 PRO processor
6th Generation AMD A6 APU processor (A6-8570E)
6thGeneration AMD A10 APU processor (A10-8770E)
6th Generation AMD A12 APU processor (A12-8870E)
|
| انواع پردازنده های قابل پشتیبانی به همراه تکنولوژی پردازنده |
AMD Ryzen™ 3 PRO 2200GE Quad-Core with Radeon™ Vega 8 Graphics (3.2 GHz base clock, up to 3.6 GHz max boost clock, 384 KBL1 cache, 2 MB L2 cache, 4 MB L3 cache)
AMD Ryzen™ 5 PRO 2400GE Quad-Core with Radeon™ Vega 11 Graphics (3.2 GHz baseclock, up to 3.8 GHz max boost clock, 384 KB L1 cache, 2 MB L2 cache, 4 MB L3 cache)
AMD Athlon™ PRO 200GE APU Dual-Corewith Radeon™ Vega 3 Graphics (3.2 GHz base clock, 192 KB L1 cache, 1 MB L2 cache, 4 MB L3 cache)
AMD PRO A6-9500E APU DualCore with Radeon™ R5 Graphics (3 GHz base clock, up to 3.4 GHz max boost clock, 1 MB L2 cache)
AMD PRO A10-9700E APU QuadCore with Radeon™ R7 Graphics (3 GHz base clock, up to 3.5 GHz max boost clock, 2 MB L2 cache)
AMD PRO A12-8870E APU QuadCore with Radeon™ R7 Graphics (2.9 GHz base clock, up to 3.8 GHz max boost clock, 2 MB L2 cache)
AMD PRO A10-8770E APUQuad-Core with Radeon™ R7 Graphics (2.8 GHz base clock, up to 3.5 GHz max boost clock, 2 MB L2 cache)
AMD PRO A6-8570E APUDual-Core with Radeon™ R5 Graphics (3 GHz base clock, up to 3.4 GHz max boost clock, 1 MB L2 cache)
|
| چیپ ست Chipset |
AMD B350 FCH
|
| انواع حافظه رم قابل نصب |
Maximum : 32 GB DDR4-2666
Number of slots : (2) DIMM (slots are customer accessible/upgradeable) Up to 2933 MT/s
Configurations :
4GB total system memory (4 GB x 1)
8GB total system memory (4 GB x 2)
8GB total system memory (8 GB x 1)
16GB total system memory (8 GB x 2)
16GB total system memory (16 GB x 1)
32GB total system memory (16 GB x 2)
32GB total system memory (8 GB x 4)
|
| گزینه های ذخیره سازی (نوع و مقدار هارد درایو) |
500GB up to 2 TB 7200 rpm SATA
500GB SATA SED
500GB 7200 rpm SATA FIPS SED
128GB up to 512 GB SATA SSD
256GB up to 512 GB SATA SED Opal 2 SSD
256GB up to 512 GB SATA FIPS SSD
128GB up to 512 GB PCIe® NVMe™ SSD
128GB up to 1 TB PCIe® NVMe™ TLC M.2 SSD
256GB up to 512 GB PCIe® NVMe™ SED Opal 2 TLC M.2 SSD
|
| کنترلر ذخیره سازی |
Storage Controller :
—
|
| مدل، نوع و میزان حافظه گرافیک قابل نصب |
Integrated:
AMD Radeon™ R5 Graphics
Discrete:
AMD Radeon™ RX 560X Graphics (4 GB GDDR5 dedicated)
|
| ورودی / خروجی کارت گرافیک |
بستگی دارد به کارت گرافیک انتخابی
|
| کنترلر صدا و اسپیکر |
کنترلر صدا :
Conexant CX20632
(1) Headset connector supports a CTIA style headset and is retaskable as a Line-in, Line-out, Microphone-in or Headphone-out port (front)
(1) Headphone port (front)
اسپیکر:
—
|
| ورودی و خروجی کیس |

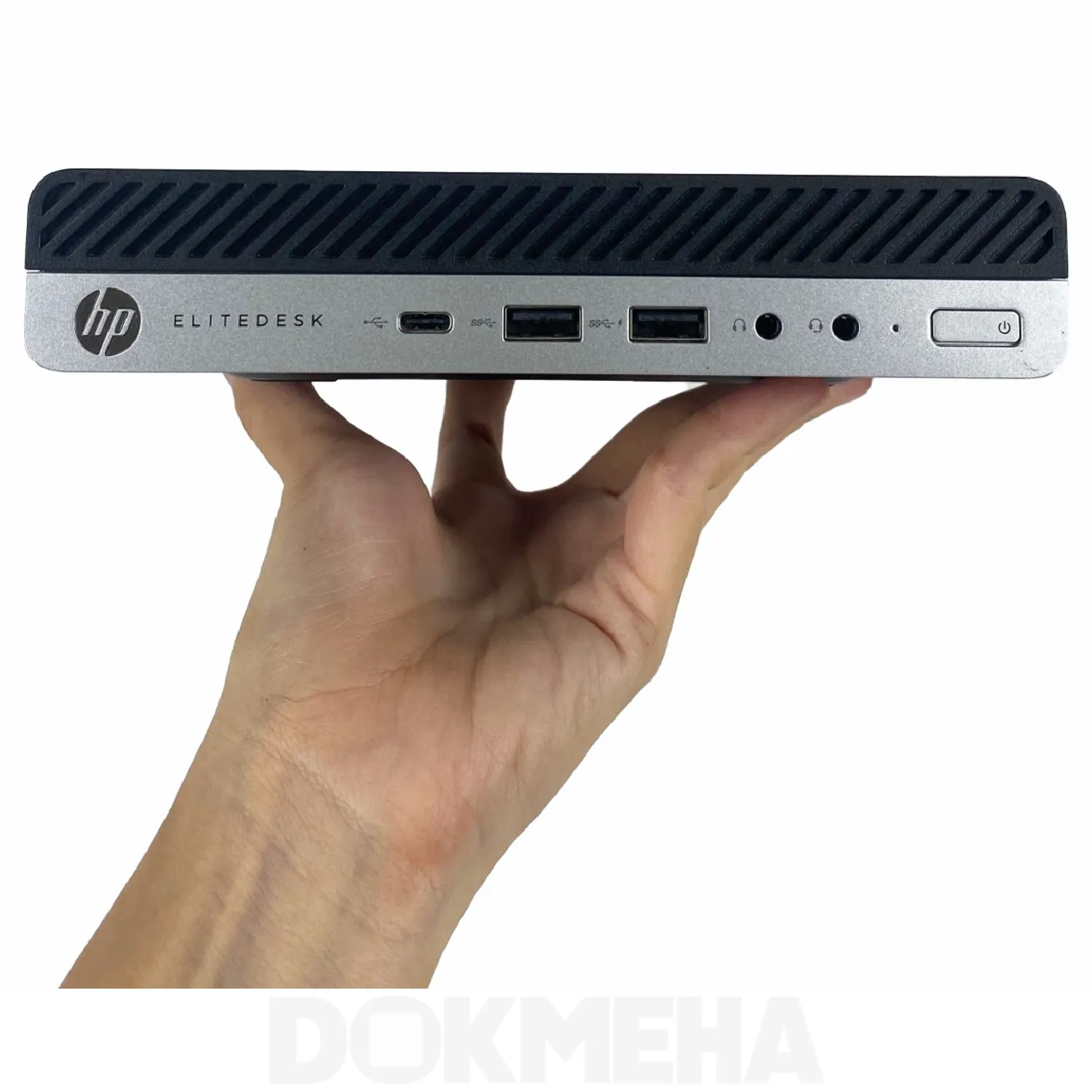

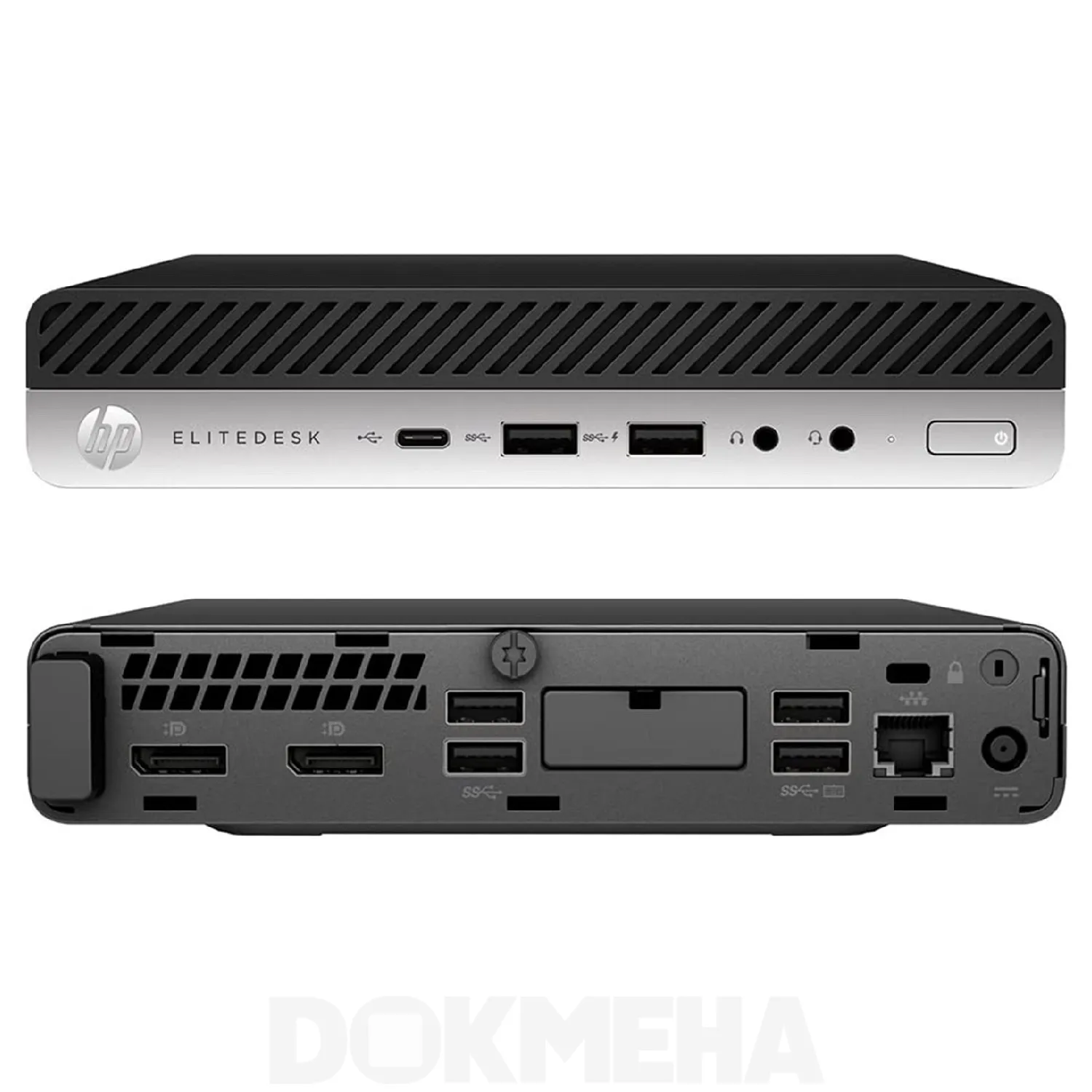

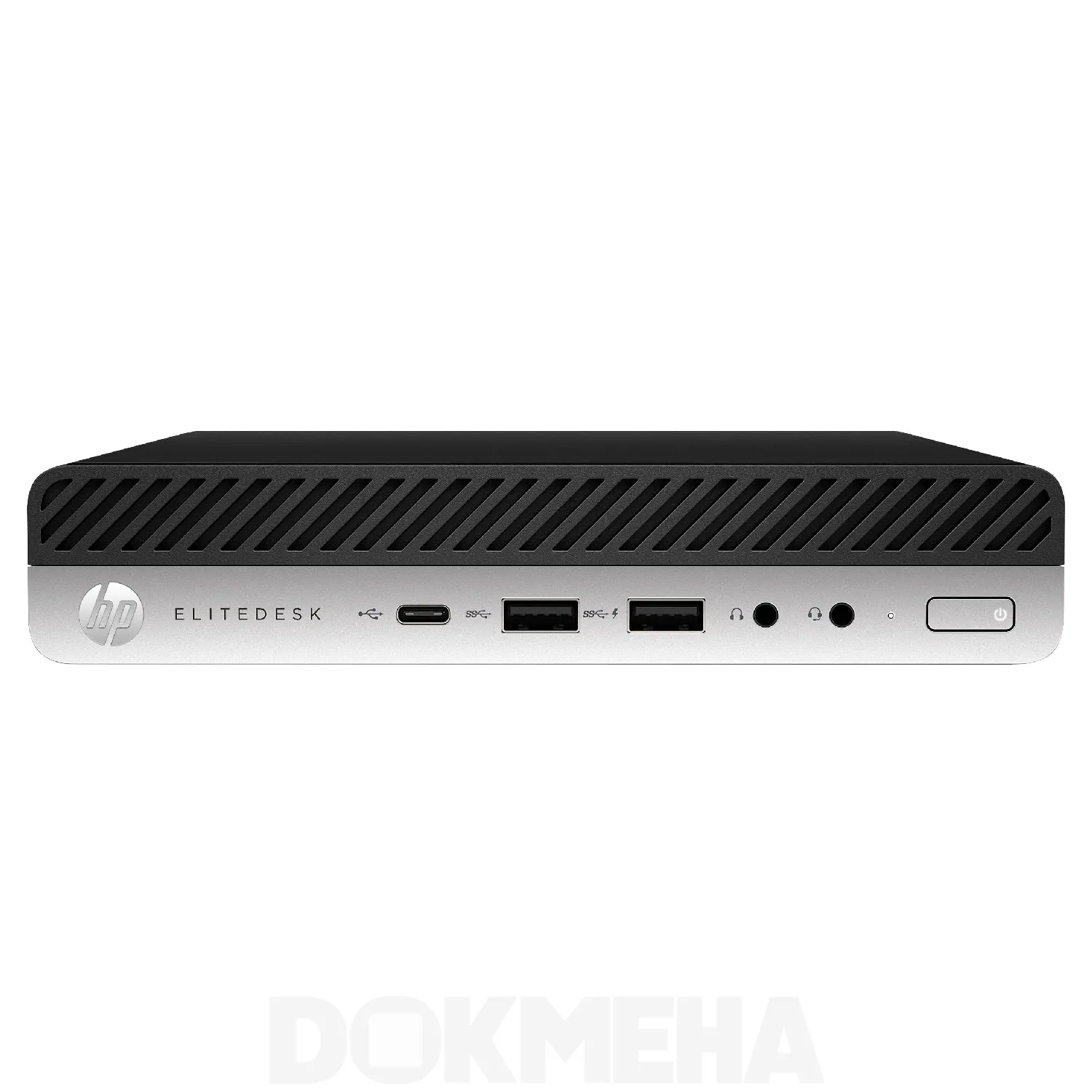

جلوی کیس :
1 headphone
1 headset connector
1 USB 3.1 Gen 1
1 USB 3.1 Gen 1 (charging)
1 USB 3.1 Type-C™ Gen 2

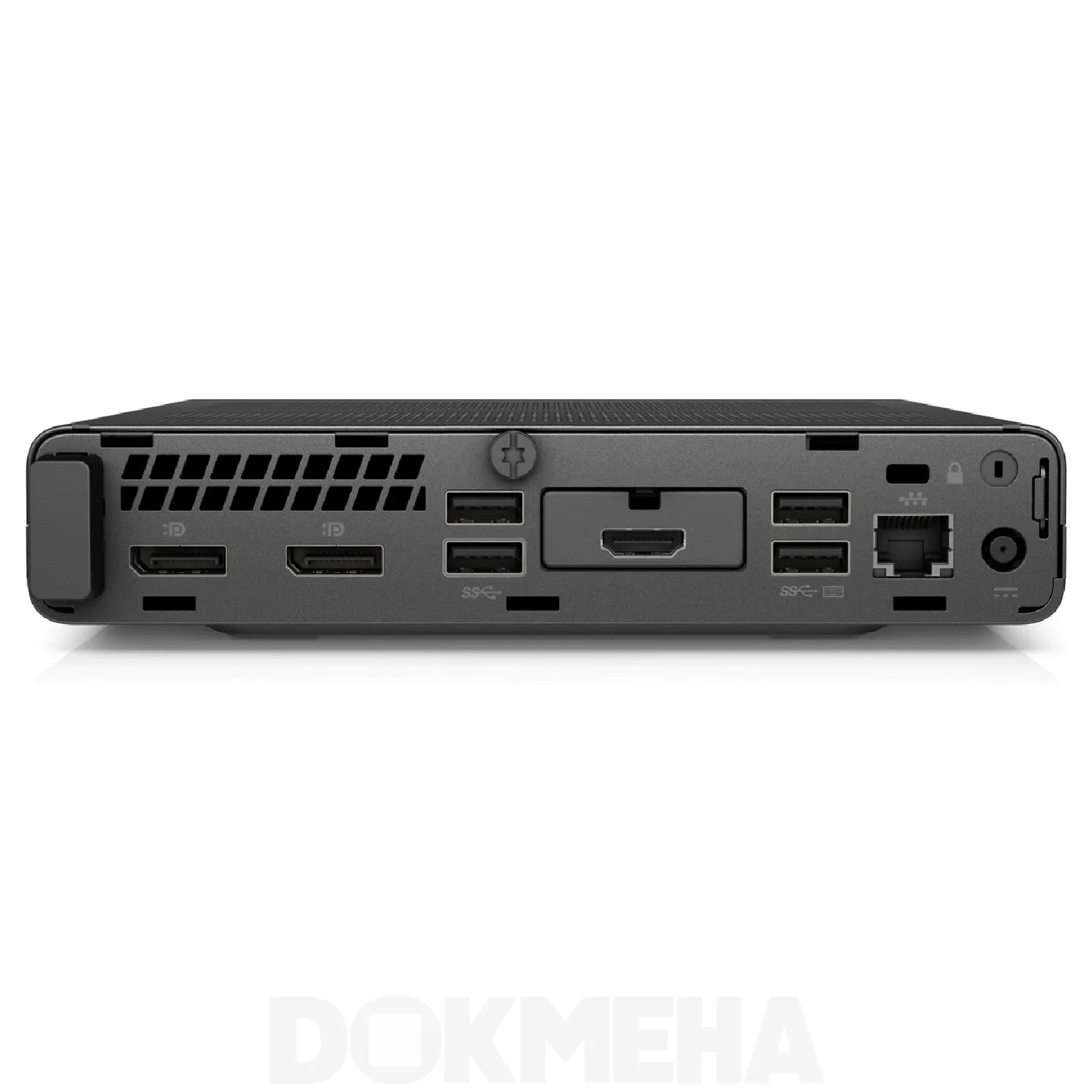

پشت کیس :
1 external antenna connector
1 power connector
1 RJ-45
2 DisplayPort™ 1.2
4 USB 3.1 Gen 1
اختیاری:
1 DisplayPort™ 1.2
1 HDMI 2.0; 1 serial
1 USB 3.1 Type-C™ Gen 1 (DisplayPort™)
1 VGA
|
| Expansion Slots (سایر اسلات ها) |
Slots:
1 M.2 2230
1 M.2 2230/2280 (1 M.2 slot for WLAN and 1 M.2 2230/2280 slot for storage.)
Bays:
One 2.5" HDD
|
| ارتباطات |
LAN:
Realtek RTL8111EPH GbE
WLAN:
Realtek 802.11a/b/g/n/ac (1×1) and Bluetooth® 4.2 Combo
Intel® Dual Band Wireless-AC9260 802.11ac (2×2) and Bluetooth® 5 M.2, non-vPro™
Intel® Dual Band Wireless-AC 8260 Wi-Fi 5 (2×2) PCIe® and Bluetooth® 4.2Combo
|
| درایو نوری |
Optical disc drives (optional) : —
|
| گزینه های امنیتی و مدیریتی |
Security :
For Windows 10, Trusted Platform Module (TPM) 2.0 (Infineon SLB9670)
Common Criteria EAL4+ Certified
RAID configurations (optional and requires a second hard drive)
Power-on password (via BIOS)
Setup password (via BIOS)
SATA port disablement (via BIOS)
Serial, USB enable/disable (via BIOS)
Integrated hood sensor
Client Security software :
Microsoft Defender
HP WorkWise app (available as a free download on Google Play)
HP PhoneWise (available on select platforms)
HP Client Security Manager Gen4 (requires Windows and Intel 8th generation processors)
HP Security Manager (including Credential Manager, HP Password Manager, HP Spare Key)
HP Device Access Manager
Manageability :
HP System Software Manager (SSM) (available for download)
HP Client Catalog
HP BIOS Configuration Utility (BCU) (available for download)
HP Driver Packs (available for download)
HP Manageability Integration Kit Gen2 (available for download)
Ivanti Management Suite (subscription required)
HP Value Add Software :
HP ePrint Driver with JetAdvantage2
HP Hotkey Support
HP Recovery Manager – CMIT
HP Jumpstart
HP Support Assistant (requires Windows and internet access)
HP Noise Cancellation Software
HP Velocity
HP Sure Click
HP Sure Start Gen4
HP Sure Run
HP Sure Recover
BIOS :
HP BIOSphere Gen4
HP DriveLock/HP Automatic DriveLock
BIOS Update via Network
Master Boot Record Security
Power On Authentication
Secure Erase (methods outlined in the National Institute of Standards and Technology Special Publication 800-88)
Absolute Persistence Module1
Pre-boot Authentication
Communication/connectivity :
HP Native Miracast Support
HP Wireless Wakeup
HP LAN-Wireless Protection
|
| ابعاد / DIMENSIONS |
طول x عرض x ارتفاع HxWxD :
Chassis :
17.7×17.5×3.4 cm
|
| وزن |
شروع وزن استاندارد کیس از :
1.26kg کیلوگرم
وزن محصول با افزایش قطعات بالاتر خواهد رفت.
|
| منبع تغذیه(Power Supply) |
65W external power adapter, up to 89% efficiency, active PFC
150W external power adapter, up to 89% efficiency, active PFC
|
| گواهی مصرف انرژی |
ENERGY STAR :
Certified models available
EPEAT :
Registered where applicable/supported
NOTE: Registration status varies by country/region.
TAA compliance :
TAA compliant models available
|
| گارانتی |
یک ماه مهلت تست
|
