| کارایی و رده بندی |
طراحی و گرافیک, کاربری صنعتی, کاربری عمومی, کاربری مالتی مدیا
|
| وضعیت محصول |
اُپن باکس
|
| برند و سری |
اچ پی الیت‌دسک – HP EliteDesk, شرکت اچ پی Hewlett-Packard Company – HP
|
| نوع و مدل کیس |

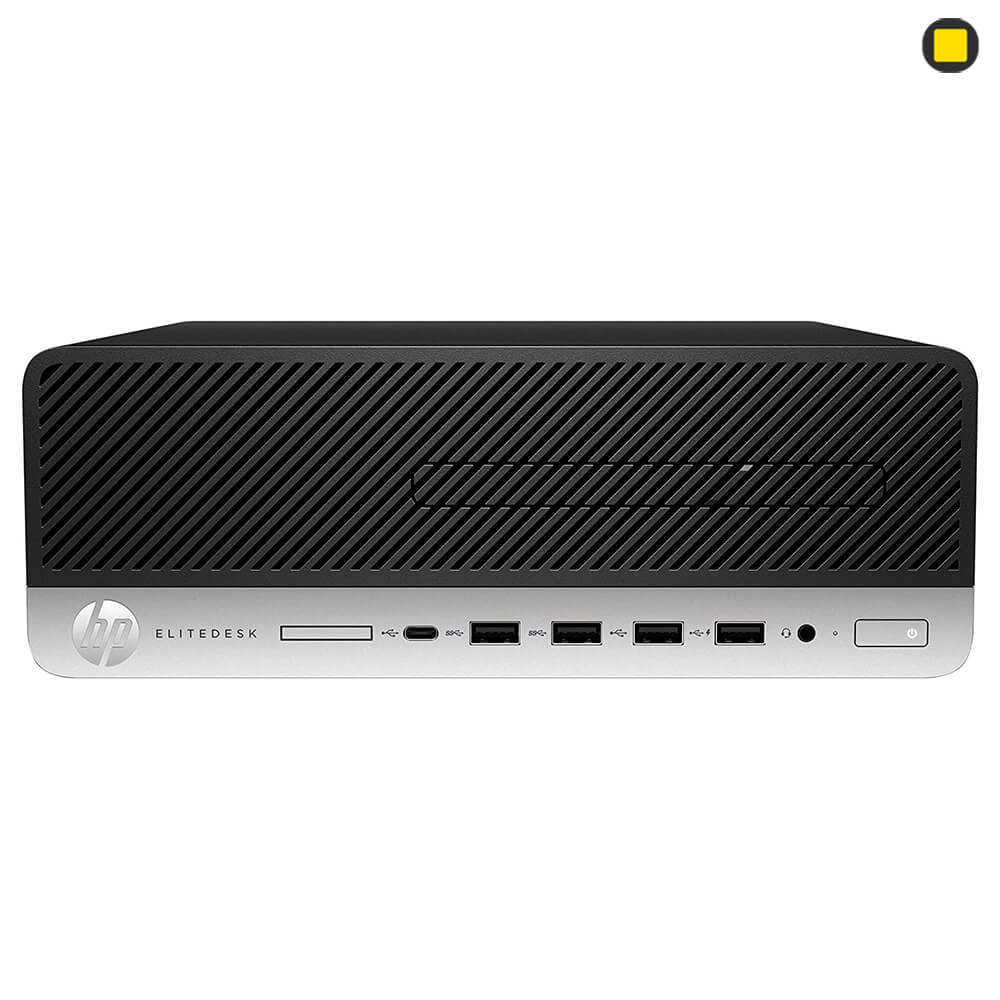

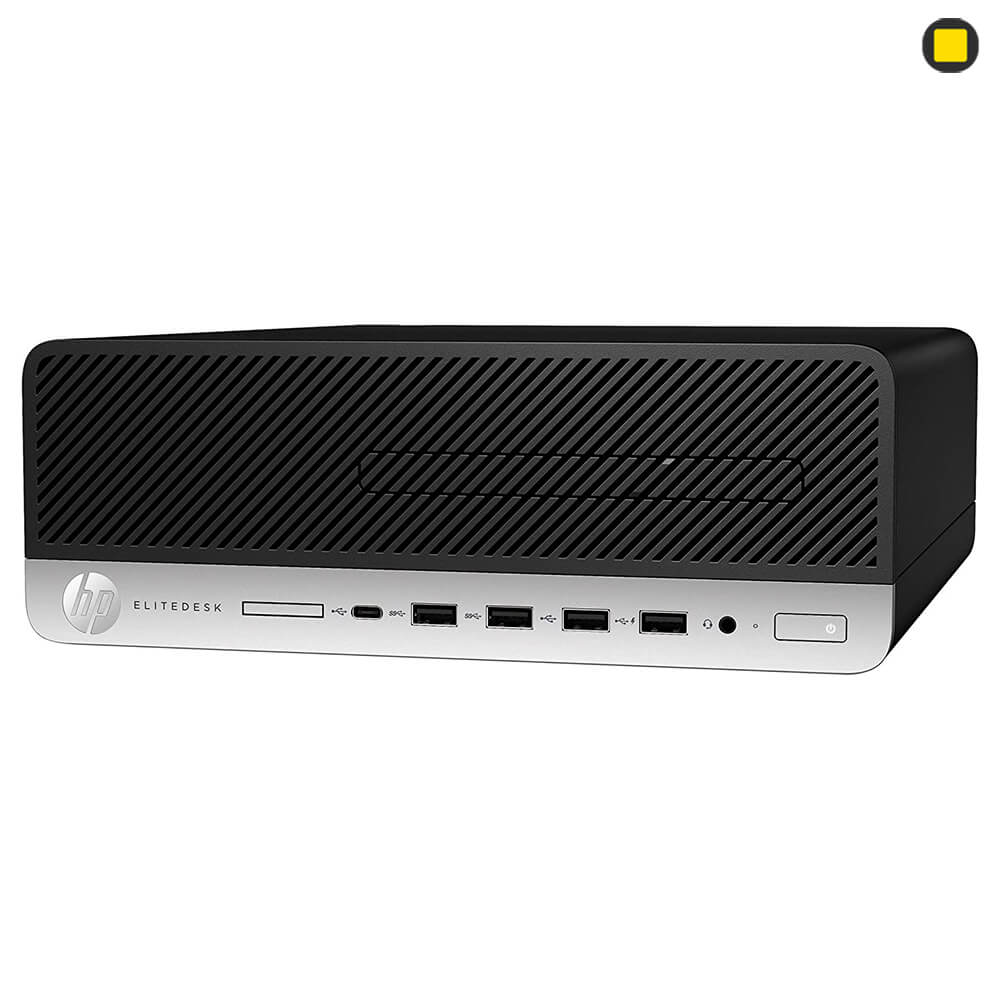

HP EliteDesk 705 G4 Small Form Factor Business PC, Small Form Factor-SFF
|
| سیستم عامل های قابل نصب |
Windows 10 Pro 64 – HP recommends Windows 10 Pro for business
Windows 10 Pro 64 (National Academic only)
Windows 10 Home 64
FreeDOS
|
| نسل پردازنده قابل پشتیبانی |
7th Generation AMD A10 APU processor (A10-9700); 7th Generation AMD A6 APU processor (A6-9500); 7th Generation AMD A8 APU processor (A8-9600); AMD Ryzen™ 3 PRO processor; AMD Ryzen™ 5 PRO processor; AMD Ryzen™ 7 PRO processor; 6th Generation AMD A6 APU processor (A6-8570); 6th Generation AMD A10 APU processor (A10-8770); 6th Generation AMD A12 APU processor (A12-8870)
|
| انواع پردازنده های قابل پشتیبانی به همراه تکنولوژی پردازنده |
AMD Ryzen™ 5 PRO 2400G Quad-Core with Radeon™ Vega 11 Graphics (3.6 GHz base clock, up to 3.9 GHz max boost clock, 384 KB L1 cache, 2 MB L2 cache, 4 MB L3
cache)
AMD Ryzen™ 3 PRO 2200G Quad-Core with Radeon™ Vega 8 Graphics (3.5 GHz base clock, up to 3.7 GHz max boost clock, 348 KB L1 cache, 2 MB L2 cache, 4 MB L3
cache)
AMD Ryzen™ 7 PRO 2700 Eight-Core (3.2 GHz base clock, up to 4.1 GHz max boost clock, 768 KB L1 cache, 4 MB L2 cache, 16 MB L3 cache)
AMD Ryzen™ 7 PRO 2700X Eight-Core (3.6 GHz base clock, up to 4.1 GHz max boost clock, 768 KB L1 cache, 4 MB L2 cache, 16 MB L3 cache)
AMD Ryzen™ 5 PRO 2600 Six-Core (3.4 GHz base clock, up to 3.9 GHz max boost clock, 576 KB L1 cache, 3 MB L2 cache, 16 MB L3 cache)
AMD PRO A8-9600 APU Quad-Core with Radeon™ R7 Graphics (3.1 GHz base clock, up to 3.4 GHz max boost clock, 2 MB L2 cache)
AMD PRO A6-9500 APU Dual-Core with Radeon™ R5 Graphics (3.5 GHz base clock, up to 3.8 GHz max boost clock, 1 MB L2 cache)
AMD PRO A10-9700 APU Quad-Core with Radeon™ R7 Graphics (3.5 GHz base clock, up to 3.8 GHz max boost clock, 2 MB L2 cache)
AMD PRO A12-8870 APU Quad-Core with Radeon™ R7 Graphics (3.7 GHz base clock, up to 4.2 GHz max boost clock, 2 MB L2 cache)
AMD PRO A10-8770 APU Quad-Core with Radeon™ R7 Graphics (3.5 GHz base clock, up to 3.8 GHz max boost clock, 2 MB L2 cache)
AMD PRO A6-8570 APU Dual-Core with Radeon™ R5 Graphics (3.5 GHz base clock, up to 3.8 GHz max boost clock, 1 MB L2 cache)
|
| چیپ ست Chipset |
AMD B350 FCH
|
| انواع حافظه رم قابل نصب |
Maximum : 64 GB DDR4-2666
Number of slots : (4) DIMM (slots are customer accessible/upgradeable) Up to 2666 MT/s
Configurations :
4 GB total system memory (4 GB x 1)
8 GB total system memory (4 GB x 2)
8 GB total system memory (8 GB x 1)
16 GB total system memory (8 GB x 2)
16 GB total system memory (16 GB x 1)
32 GB total system memory (16 GB x 2)
32 GB total system memory (8 GB x 4)
64 GB total system memory (16 GB x 4)
|
| گزینه های ذخیره سازی (نوع و مقدار هارد درایو) |
500GB up to 2 TB 7200 rpm SATA
500GB SATA SED
500GB 7200 rpm SATA FIPS SED
128GB up to 512 GB SATA SSD
256GB up to 512 GB SATA SED Opal 2 SSD
256GB up to 512 GB SATA FIPS SSD
128GB up to 512 GB PCIe® NVMe™ SSD
128GB up to 1 TB PCIe® NVMe™ TLC M.2 SSD
256GB up to 512 GB PCIe® NVMe™ SED Opal 2 TLC M.2 SSD
|
| کنترلر ذخیره سازی |
Storage Controller :
—
|
| مدل، نوع و میزان حافظه گرافیک قابل نصب |
AMD Radeon Graphics (Integrated) :
Radeon R5 Series
AMD PRO A6-9500
Radeon R7 Series
AMD PRO A8-9600 and AMD A10-9700
Discrete graphics :
Ryzen 3 PRO 2200G APU with AMD Radeon Vega Graphics 8
AMD Ryzen 5 PRO 2400G APU with AMD Radeon Vega Graphics 11
NOTE: AMD Ryzen PRO CPU requires discrete graphic card attached
|
| ورودی / خروجی کارت گرافیک |
بستگی دارد به کارت گرافیک انتخابی
|
| کنترلر صدا و اسپیکر |
کنترلر صدا :
Conexant CX20632
(1) Headset connector supports a CTIA style headset and is retaskable as a Line-in, Line-out, Microphone-in or Headphone-out port (front)
(1) Headphone port (front)
(1) Line-out (rear)
اسپیکر:
2W class D mono amplifier for the internal speaker only
|
| ورودی و خروجی کیس |

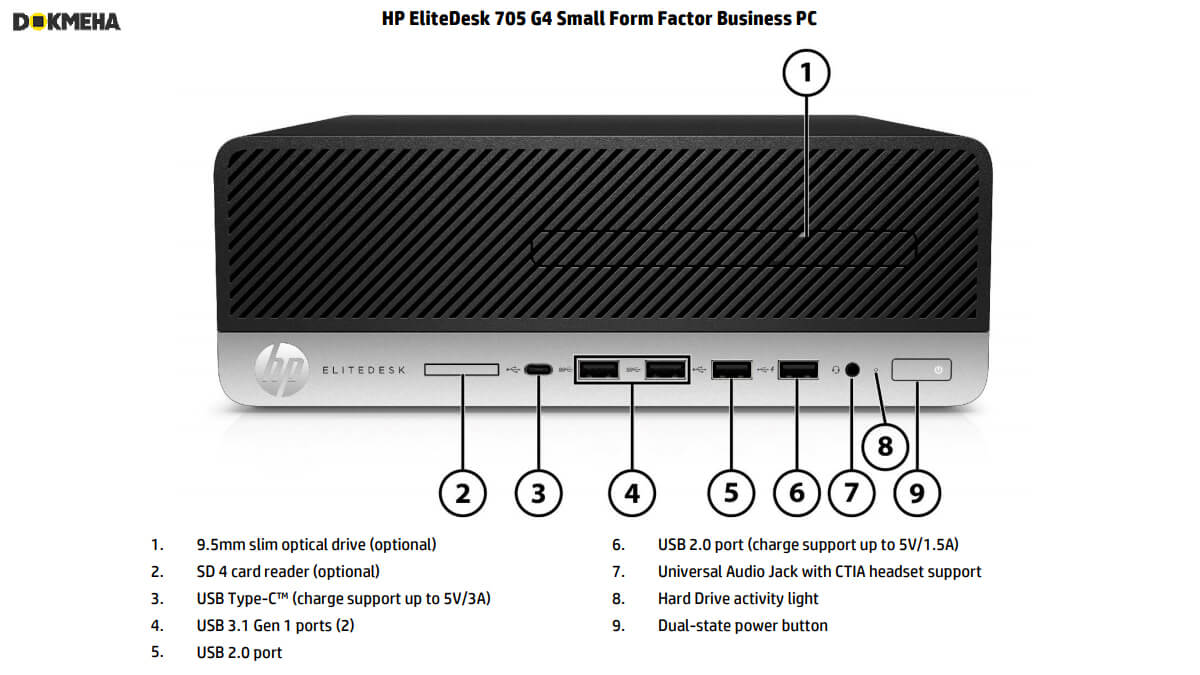

جلوی کیس :
1 headset connector
1 USB 2.0
1 USB 2.0 (fast charging)
1 USB Type-C™ (charging)
2 USB 3.1 Gen 1

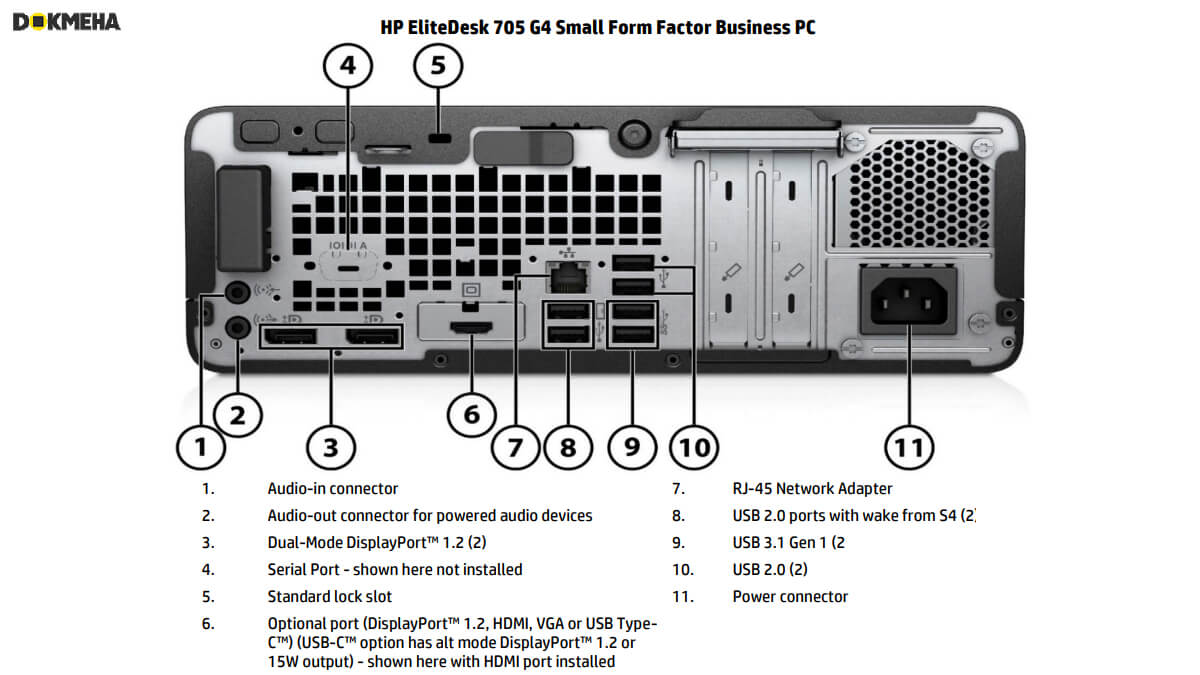

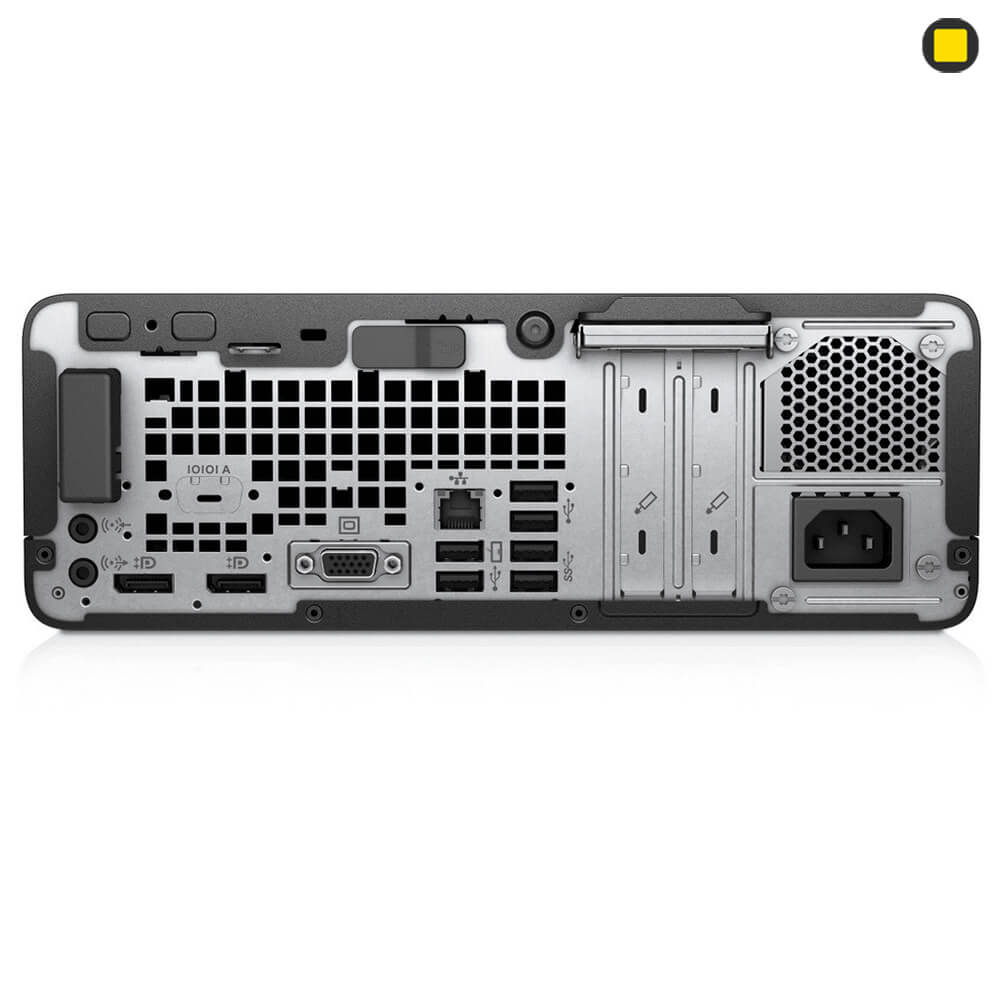

پشت کیس :
1 audio-in
1 audio-out
1 power connector
1 RJ-45
1 serial and PS/2 ports combination
2 DisplayPort™ 1.2
2 USB 3.1 Gen 1
4 USB 2.0
پورت های داخلی :
1 DisplayPort™ 1.2
1 HDMI 2.0
1 serial
1 USB 3.1 Type-C™ Gen 1 (DisplayPort™)
1 VGA
اختیاری :
—
Bays :
(2) 6.35 cm (2.5 in) Internal storage drive
NOTE: SFF can be configured with either (1) 8.89 cm (3.5 in) or (2) 6.35 cm (2.5 in) internal storage drive (2.5 inch drive needs adapter).
(1) 0.9 cm (0.35 in) Slim optical disc drive (ODD)
(1) 8.89 cm (3.5 in) Internal storage drive
(1) Secure Digital (SD) reader
|
| Expansion Slots (سایر اسلات ها) |
(1) M.2 PCIe x1 2230 (for WLAN)
(1) M.2 PCIe x2 2280/2230 Combo (for storage)
(1) PCI Express x1
(1) PCI Express x16
(3) SATA port
Memory Card Device :
5in1 SD card reader
|
| ارتباطات |
LAN :
Ethernet (RJ-45) :
Realtek RTL8111EPH (standard)
Wireless LAN :
Intel 3168 802.11ac 1×1 with Bluetooth 4.0 (Brazil)
Intel 7265 802.11ac 2×2 with Bluetooth M.2 Combo Card non-vPro (Brazil)
Intel 9260 802.11ac 2×2 with Bluetooth 5 PCIe non-vPro
Realtek 802.11ac 2×2 with Bluetooth 4.2 LE M.2 PCIe
Realtek 802.11ac 1×1 with Bluetooth 4.2 LE M.2 PCIe
NOTE: Wireless access point and Internet service required and not included. Availability of public wireless access points limited. The specifications for the 802.11ac WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it might affect the ability of the notebook to communicate with other 802.11ac WLAN devices
|
| درایو نوری |
Optical disc drives (optional) :
HP 9.5 mm (0.37 in) Slim DVD Writer
HP 9.5 mm (0.37 in) Slim DVD-ROM
HP 9.5 mm (0.37 in) Slim Blu-Ray Writer
|
| گزینه های امنیتی و مدیریتی |
Security :
For Windows 10, Trusted Platform Module (TPM) 2.0 (Infineon SLB9670)
Common Criteria EAL4+ Certified
RAID configurations (optional and requires a second hard drive)
Power-on password (via BIOS)
Setup password (via BIOS)
SATA port disablement (via BIOS)
Serial, USB enable/disable (via BIOS)
Integrated hood sensor
Client Security software :
Microsoft Defender
HP WorkWise app (available as a free download on Google Play)
HP PhoneWise (available on select platforms)
HP Client Security Manager Gen4 (requires Windows and Intel 8th generation processors)
HP Security Manager (including Credential Manager, HP Password Manager, HP Spare Key)
HP Device Access Manager
Manageability :
HP System Software Manager (SSM) (available for download)
HP Client Catalog
HP BIOS Configuration Utility (BCU) (available for download)
HP Driver Packs (available for download)
HP Manageability Integration Kit Gen2 (available for download)
Ivanti Management Suite (subscription required)
HP Value Add Software :
HP ePrint Driver with JetAdvantage2
HP Hotkey Support
HP Recovery Manager – CMIT
HP Jumpstart
HP Support Assistant (requires Windows and internet access)
HP Noise Cancellation Software
HP Velocity
HP Sure Click
HP Sure Start Gen4
HP Sure Run
HP Sure Recover
BIOS :
HP BIOSphere Gen4
HP DriveLock/HP Automatic DriveLock
BIOS Update via Network
Master Boot Record Security
Power On Authentication
Secure Erase (methods outlined in the National Institute of Standards and Technology Special Publication 800-88)
Absolute Persistence Module1
Pre-boot Authentication
Communication/connectivity :
HP Native Miracast Support
HP Wireless Wakeup
HP LAN-Wireless Protection
|
| ابعاد / DIMENSIONS |
طول x عرض x ارتفاع HxWxD :
Chassis :
3.7×10.6×11.7 in
9.5x27x29.6 cm
Packaged :
39.9×23.0x49.9cm
15.71×9.06×19.65 in
طراحی / Design :
Product Color :
Silver & Black
|
| وزن |
شروع وزن استاندارد کیس از :
9.98lb پوند و 4.53kg کیلوگرم
وزن محصول با افزایش قطعات بالاتر خواهد رفت.
|
| منبع تغذیه(Power Supply) |
180W internal power supply, up to 92% efficiency, active PFC
|
| گواهی مصرف انرژی |
ENERGY STAR :
Certified models available
EPEAT :
Registered where applicable/supported
NOTE: Registration status varies by country/region.
TAA compliance :
TAA compliant models available
|
| گارانتی |
یک ماه مهلت تست
|
| کدام کانفیگ |
کیس اول, کیس دوم, کیس سوم
|
